Small amphibious all-terrain vehicle
This series of small amphibious all-terrain vehicles can travel on roads or float on the water. At the same time, it can adapt to complex road conditions such as mud/snowfield, swamp, hills, waters, streams, forests and grasslands, and have certain resistance to high temperature and low temperature.
Applicable disasters:
Earthquake rescue,Mountain rescue,Flood rescue,Snow and ice removal
Product functions:
Transportation,Medical rescue,Snow sweeping and removal
Brochure：
机重
功率
时速
Sales hotline：
0851-88507149
Detailed introduction
This series of small amphibious all-terrain vehicles can travel on roads or float on the water. At the same time, it can adapt to complex road conditions such as mud/snowfield, swamp, hills, waters, streams, forests and grasslands, and have certain resistance to high temperature and low temperature. If operating in waters with relatively high salinity, metal components of the vehicle need to be protected. As for emergency rescue, the vehicle's main function is to transport fire-fighting and rescue personnel to the first scene of disaster in time under extremely complicated ground conditions, and finish the emergency rescue task of the last 1 kilometer and the last 5 minutes. At the same time, it is used to transfer wounded persons safely and provide materials and living supplies for the disaster area; It can also carry firefighters' equipment and materials for a long distance, thus freeing firefighters' hands and saving their physical strength. The upper part can be equipped with different emergency kits, such as rescue stretcher, searchlight, warning light, alarm, winch, detacher, etc., thus providing self-security guarantee and rescue capability for firefighters in trouble to a great extent.
Product highlights
(1) Unique low-pressure duck-webbed tyre is adopted, which is designed with blades and can be propelled by amphibious functions on extreme off-road terrain, with optimized traction force. The tyre exerts little pressure on the ground and can achieve great traction force.
(2) Progressive steering system (APS) is an innovation of braking force in the gearbox differential steering application field. In order to eliminate traditional skid and jitter problems, an elastic mechanism is equipped between the handle and the brake system, thus realizing the progressive two-speed steering system. The steering system can make the vehicle turn in situ and turn around in a narrow space, which greatly improves the maneuverability of the vehicle. At the same time, it can guarantee the safety of the vehicle when traveling at a high speed and the comfort when traveling at a low speed.
(3) The lower vehicle body is made of integrated high-density polyethylene (HDPE), which has good dielectric properties and environmental stress crack resistance. This material is smooth and durable, and its hardness, tensile strength and creep behavior are better than those of low density polyethylene. In addition, the material has good chemical stability, is insoluble in any organic solvent at room temperature, and is resistant to corrosion by acid, alkali and various salts. Due to the lightweight material, the weight of the whole vehicle is ≤800 kg.
Technical parameters
| • Power system |
Engine brand: Vanguard |
Continuous operating time: ≥60Nm |
| • Maneuverability |
High speed: ≥35km/h |
Traveling speed in water: ≥5km/h |
| • Beidou system parameters |
Receiving sensitivity: ≤-127.6dBm ≤2s |
Positioning precision: ≤10m ≤0.1m/s |
Note: Due to the continuous improvement of our products, all designs or technical parameters are subject to change if they do not correspond to the actual product, please understand.

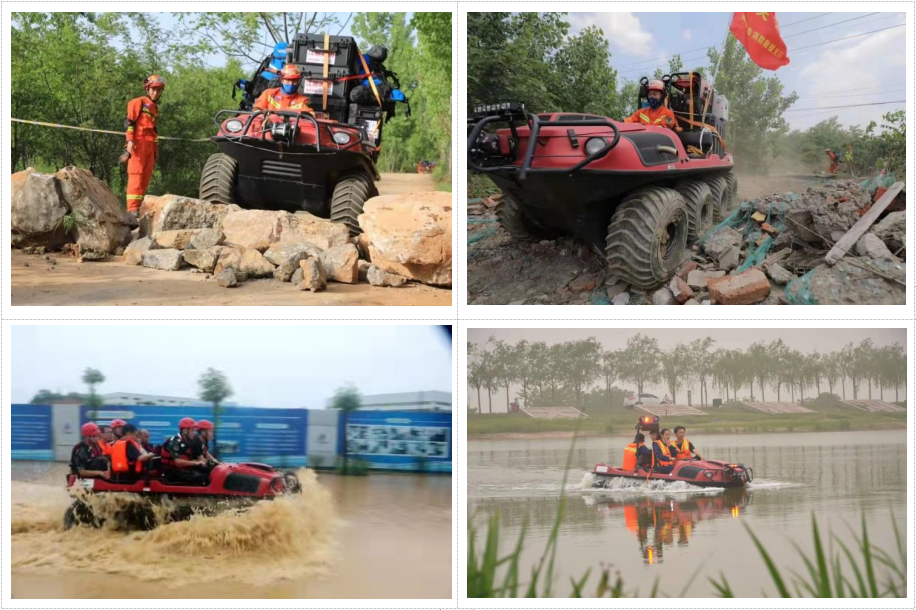

Application scenarios
